Clinic Theatre Room 720 LED Surgical Lights 140000 Lux GB15979-2002 Standard

Name: Clinic Theatre Room 720 LED Surgical Lights 140000 Lux GB159792002 Standard
Brand: MEKODA
Price: 3000 USD

Clinic Theatre Room 720 LED Surgical Lights 140000 Lux GB15979-2002 Standard Manufactures

Brand Name : MEKODA

Certification : CE FDA

Place of Origin : China

MOQ : 1 set

Price : 3000-10000usd/set

Payment Terms : D/A, L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 pcs/set

Delivery Time : 60 DAYS

Packaging Details : CARTON

Illuminance : 160000/140000Lux

SERVICE LIFE : 60000h

Function : Surgery Medical

After-sale Service : Online technical support

Safety standard : GB15979-2002

Bulb type : Germany Light Bulb

Instrument classific : Class II

material : metal, Plastic, Steel

Contact Now

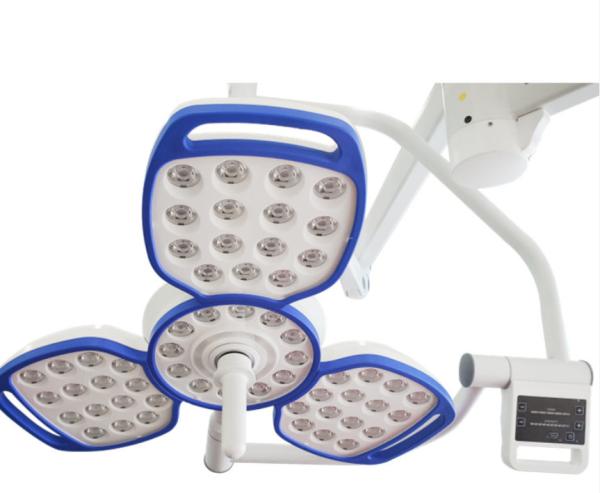

Clinic Theatre Room 3 Head 5 5 Led Surgical Lights 720 Led Shadowless Operating Lamp LED Surgical Lights

Product Paramenters

	LED4	LED5
Max Illuminance(Lux)	140,000	160,000
Bulb type	OSRAM	OSRAM
Bulb life(hours)	>60,000	>60,000
Color temp(k)	4500	4500
Color rendering index(Ra)	>96	>96
R9	>90	>90
Translucent glass temperature rise	＜0.5℃	＜0.5℃
Operator temperature rise	＜0.5℃	＜0.5℃
Diameter of spot	200-280mm	200-280mm
Spot uniformity(D10/D50)	0.55	0.6
Illumination depth	1000mm±5%	1200mm±5%
Shadowless rate of deep cavity	100% -5%	100% -5%
Single plate shadowless rate	60% -5%	75% -5%
Shadowless rate of single-plate deep cavity	55% -5%	70% -5%
Double plate shadowless rate	50% -5%	65% -5%
Shadowless rate of double plate deep cavity	50% -5%	60% -5%
Irradiance Ee/Ec(MW/㎡lux)	≤3.6MW/㎡lux	≤3.6MW/㎡lux
Radiated Power	＜450w/㎡	＜500w/㎡

Item	Quantity
Lamp head 5	1 UNIT
Lamp head 4	1 UNIT
Rotating arm + fixing base	1 SET
Balance Arm	2 SETS
Switching power supply	2 UNITS
Disinfection Handpiece	4 PIECES
Allen Wrench	1 SET
Mounting fixing bolt	1 SET
Shroud Base	1 SET
Large shield	1 SET

Clinic Theatre Room 720 LED Surgical Lights 140000 Lux GB15979-2002 Standard

FAQ

1 why use shadowless operation lamp ?
--- When the doctor performs the operation, block the light for the hand or arm or head , and use the shadowless lamp to fade the shadowless to ensure the accuracy of the operation
2 Why use LED shadowless lamp?
---Their are no 100% shadowless ,If half of the light is blocked, the other half of the light can still meet the needs of surgery, which is relatively shadowless
3,The cold and warm light sources used by LED, if the light bright are adjusted to 50% of the site, the light source at this time is closest to natural light, what you see is relatively real, and the photo trueness emitted by IPHONE is relatively high.And the LED is relatively energy-saving, while the temperature of the halogen lamp can easily increase, producing a burning sensation
